MECHALYSIS
Mechanical Analysis, Design and Solutions
2D and 3D CAD and FEA analysis (Product design, Problem-solving, Strain-Stress Analysis, Structural, Thermal, Contact and Modal), Conceptual Design, Optimisation and Stractural Analysis
Strain-Stress Analysis, Structural, Thermal, Contact and Modal)
P-CAD-201

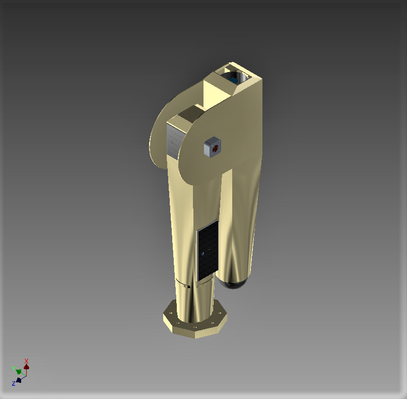

Design of componenets, parts and complex mechanical systems such as 6-axis robots and mechanical arms.
COMPUTER AIDED DESIGN
(CAD)
Design of componenets and parts and mechanical systems.

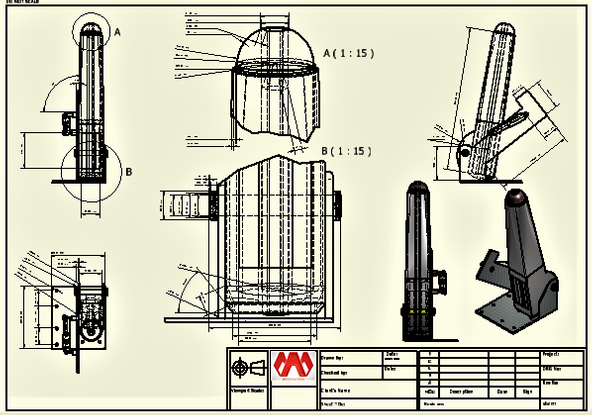

The Mechanical Probe Arm (MPA) which is designed by Mechalysis is capable to be used for deployment of the seabed scanners (Side-scan sonar) during underwater mobile scanning. The design of the MPA may also be modified for other offshore and onshore applications.
P-CAD-205
P-CAD-210
Mechanical Probe Arm (MPA) with fixed flat stand.
P-CAD-211
Design of componenets, parts and complex mechanical systems.
Such as pressure vessels as in
Heat Exchanger (UST-2020); A detailed design of Shell and Tube Heat exchanger by Mechalysis Ltd.
P-CAD-212
Heat Exchanger (UST-2020-S)
P-CAD-213
Heat Exchanger (UST-2020-SL)
P-CAD-215
Speed boat designd by Mechalysis.
Copyright 2019 Mechalysys Ltd. ©
P-CAD-220-230
Design of components;
At mechalysis, we also design all type of mechanical subsystems and components according to custometrs' requirements.
P-CAD-270
Design of components;

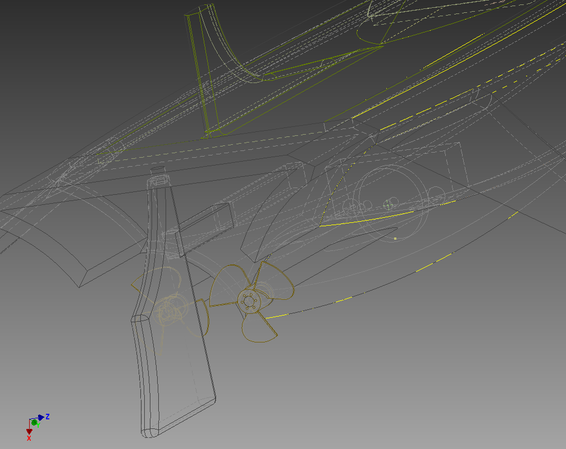

2D drawing of
a propeller
Finite Element Analysis
(FEA)
P-FEA-T-425
Transient Thermal Analysis of Titanium lens with embedded radiator
Thermal Conductivity
P-FEA-B-420
Buckling analysis including buckling of subsea pressure vessels and pipes etc.
P-FEA-V-430
Dynamic analysis including vibration and modal analysis etc.
P-FEA-S-420

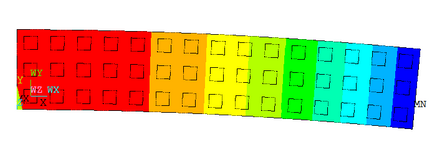

Structural analysis including stress - strain analysis
deflection etc.
Computational Fluid Dynamics
(CFD)
P-CFD-M-740
Fluid Flow
Multiphysics analysis
The pressure contour is shown on the propeller (Left image) and the streamlines of water current.
P-CFD-M-745
CFD analysis of heat exchangers
Velocity profile
P-CFD-M-746
CFD Analysis of the fluids flow in a Static Mixer
A static mixer is a precision engineered device which is widely used for the continuous mixing of fluid materials.
P-CFD-A-748
CFD Multiphase Analysis
3D Multiphase flow analysis in a container.
P-CFD-A-760
Aerofoils analysis

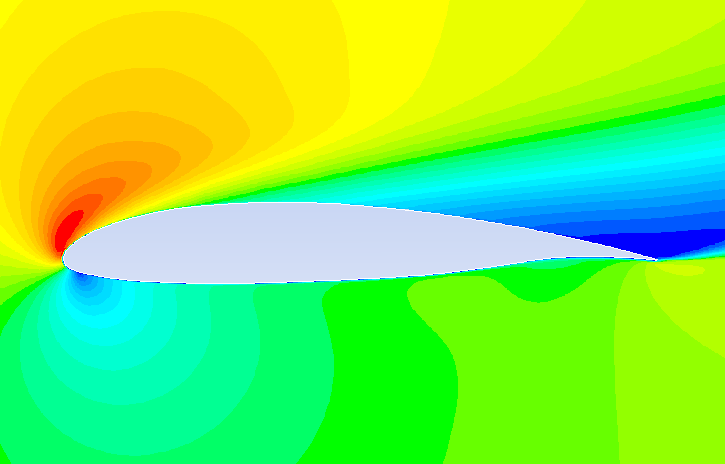

Image: Velocity Counter Magnitude for aerofoil DU84-123V3
P-CFD-A-762
3D Flow analysis of airplanes
Image: Pressure profine and streamlines of a wing and a full scale airplane.
